UAV Inspection Camera

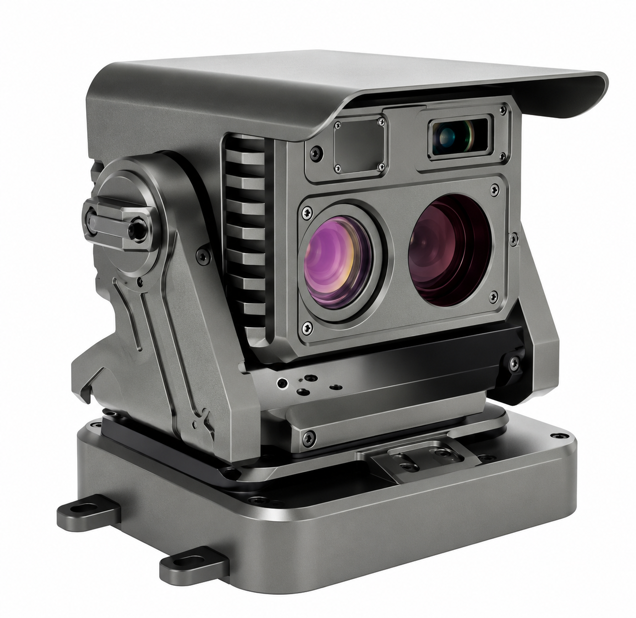

S10F Four-Sensor EO/IR Gimbal Camera
A multi-sensor stabilized camera for aerial and mobile inspection. The S10F combines a 4 MP visible-light camera with 10x optical zoom, person and vehicle recognition, target tracking, laser ranging, and a green laser pointer. The 35 mm thermal-imaging module is Optional and must be confirmed when ordering.
General Specifications
- Dimensions
- 150 x 182 x 171.5 mm
- Operating Current
- 900 mA at 12V
- Operating Temperature
- -20°C to +60°C
- Control
- UART / S.BUS / TCP
- Video Output
- IP, 1080p / 720p at 30 / 60 fps
- Local Storage
- TF card up to 128 GB, Class 10
- Platform Support
- UAV and compatible mobile inspection platforms
Visible-Light Camera
- Image Sensor
- Sony 1/2.8-inch CMOS
- Effective Pixels
- 4 million
- Image Quality
- Full HD 1080P, 1920 x 1080
- Optical Zoom
- 10x, F=4.7-47 mm
- Horizontal FOV
- 69.9° wide to 8.7° telephoto
- Minimum Illumination
- Color: 0.01 lux at F1.6
- Shutter Speed
- 1/1 s to 1/10000 s
AI Recognition and Tracking
- Person and vehicle recognition
- Up to 50 simultaneous detection targets
- Target tracking with 30 Hz offset updates
- Tracking output latency below 30 ms
- Supported target size from 16 x 16 to 256 x 256 pixels
- Tracking speed below 32 pixels per frame
Laser Functions
- Rangefinder
- 5-1500 m, environment dependent
- Rangefinder Beam
- 905 nm pulsed laser
- Rangefinder Power
- Below 1 mW, eye-safe
- Pulse Frequency
- 1 Hz
- Laser Pointer
- Green, 50 mW
- Indication Distance
- Up to 1000 m, excluding strong or direct sunlight
Optional Thermal-Imaging Configuration
Optional: a 35 mm uncooled long-wave infrared thermal-imaging module can be specified for the S10F. The manual lists a 12.5° horizontal field of view and a 10° vertical field of view. Thermal detector resolution is not stated here because the source manual contains conflicting values. Temperature measurement is also a separate optional capability. Confirm the required thermal and measurement configuration with AeroValo before ordering.
Related Solutions
Product Questions
What functions are included in the S10F?
The confirmed functions include 10x optical zoom, person and vehicle recognition, target tracking, laser ranging, and a green laser pointer.
Is the 35 mm thermal-imaging module standard?
No. The 35 mm thermal-imaging module is Optional and must be confirmed as part of the ordered configuration.
Which control interfaces are supported?
The manual lists UART, S.BUS, and TCP control. Include your aircraft and flight-controller information with the inquiry so compatibility can be confirmed.
RFQ
Request an S10F configuration review.
Send your UAV or mobile platform model, available mounting space, control interface, video workflow, quantity, and destination market. State clearly whether the Optional 35 mm thermal-imaging module or optional temperature-measurement capability is required.
- Visible-light, tracking, ranging, and laser configuration review
- Optional thermal-imaging configuration confirmation
- Export-ready packaging and documentation
