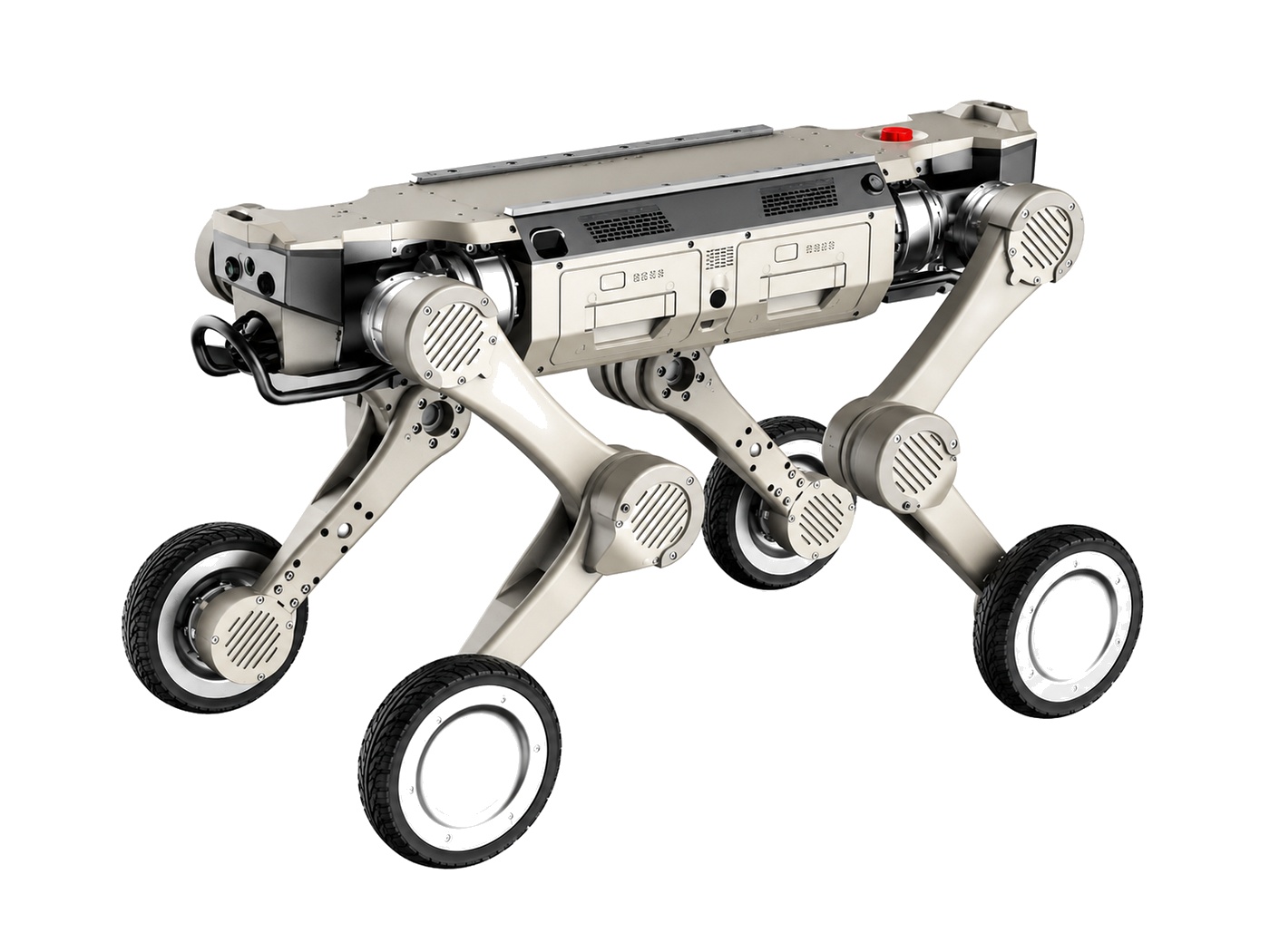

Tongchui M1 Heavy-Duty Quadruped Robot

A heavy-duty 16-DOF wheel-leg platform engineered for demanding inspection, patrol, emergency response, and payload integration. The M1 carries a stable 30 kg load, runs for at least 3.5 hours at full load, and combines high-speed rolling with agile legged mobility across difficult terrain.

Tongchui M1

Technical Specifications

Standing Dimensions: 920 x 480 x 585 mm
Weight: 41 kg including battery
Stable Payload: 30 kg
Battery: 18.7 Ah, 54 V
Degrees of Freedom: 16 total; 3+1 per wheel-leg
Runtime: At least 5 h unloaded; at least 3.5 h at full load
Maximum Speed: 8 m/s
Standard Maximum Speed: 6 m/s
Maximum Slope: ±45°
Maximum Obstacle Height: 80 cm
Barrier Crossing: At least 50 cm high; barrier thickness up to 10 cm
Maximum Stair Height: 25 cm
Auxiliary Power: 5 V, 12 V, 24 V, and 48 V; at least 480 W
Battery System: Dual batteries with quick-swap and hot-swap support; no shutdown required
Communication Interfaces: 2 x Gigabit Ethernet, 2 x USB 3.0, and 1 x serial port
Protection Modes: Software and hardware emergency stop; low-battery and over-temperature alarms
Motion & Terrain: Stepping, rolling, crawling, multidirectional travel, and in-place rotation across gravel, asphalt, grass, sand, forest floor, and building rubble
Disturbance Recovery: Active balance under impact; automatic stand-up or protected fault state after a fall
Charging: Manual and automatic charging supported
Direction Switching: Front/rear operation, bidirectional vision, and in-place turnaround
Environment: -20°C to 55°C; IP67 protection
LiDAR: Front and rear 96-line units; 360° horizontal x 90° vertical FOV; at least 120 m coverage diameter
FPV Cameras: Front and rear wide-angle cameras; at least 8 MP
RTK Module: GNSS RTK for real-time robot positioning
Ultrasonic Sensors: Left and right obstacle sensing up to 3.5 m
Wireless Communication: Wi-Fi, Bluetooth, and RF; 500 to 1,000 m RF range

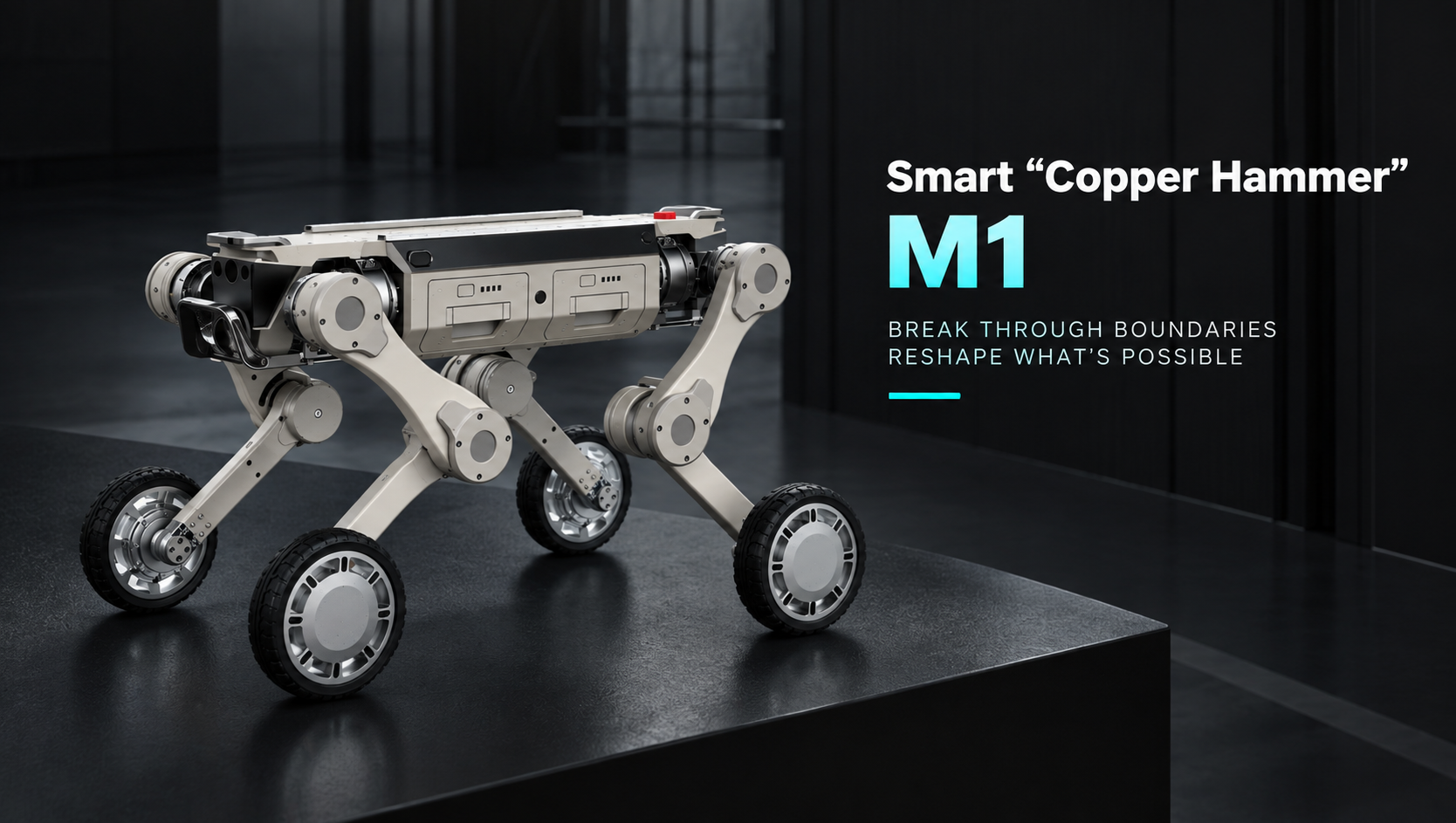

Tongchui M1 heavy-duty wheeled quadruped robot overview

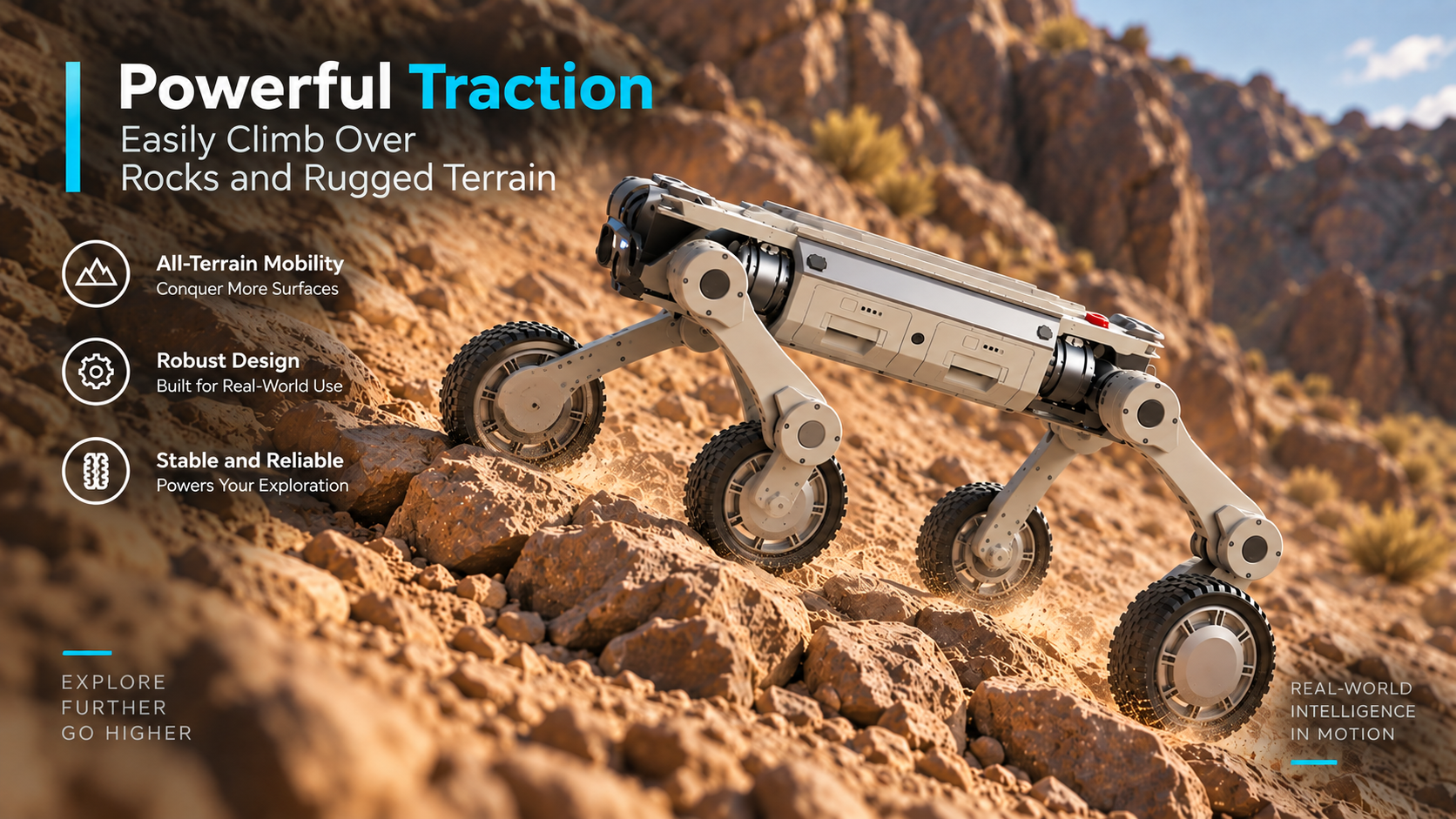

Tongchui M1 traction across rocky terrain

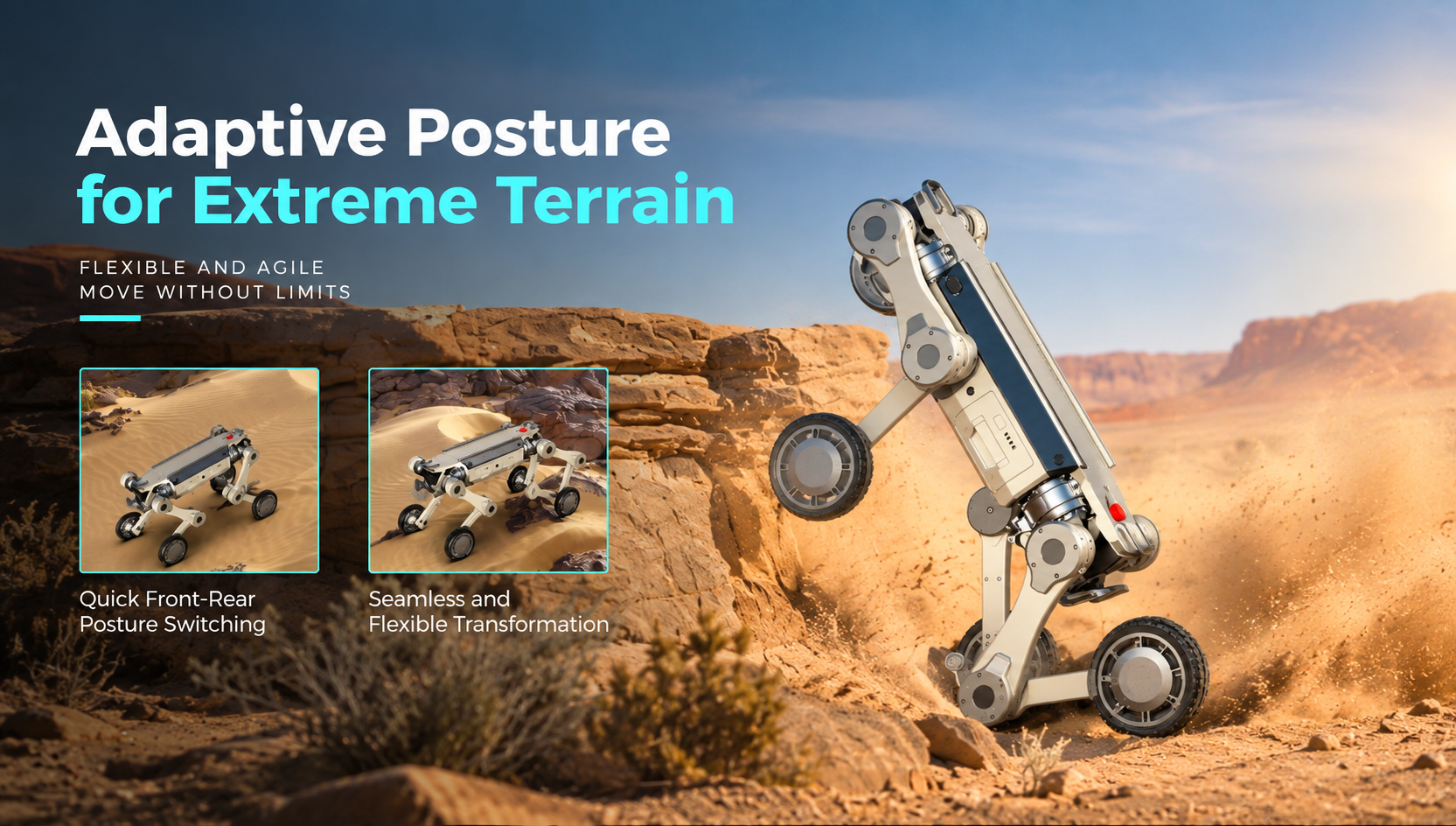

Tongchui M1 adaptive posture for extreme terrain

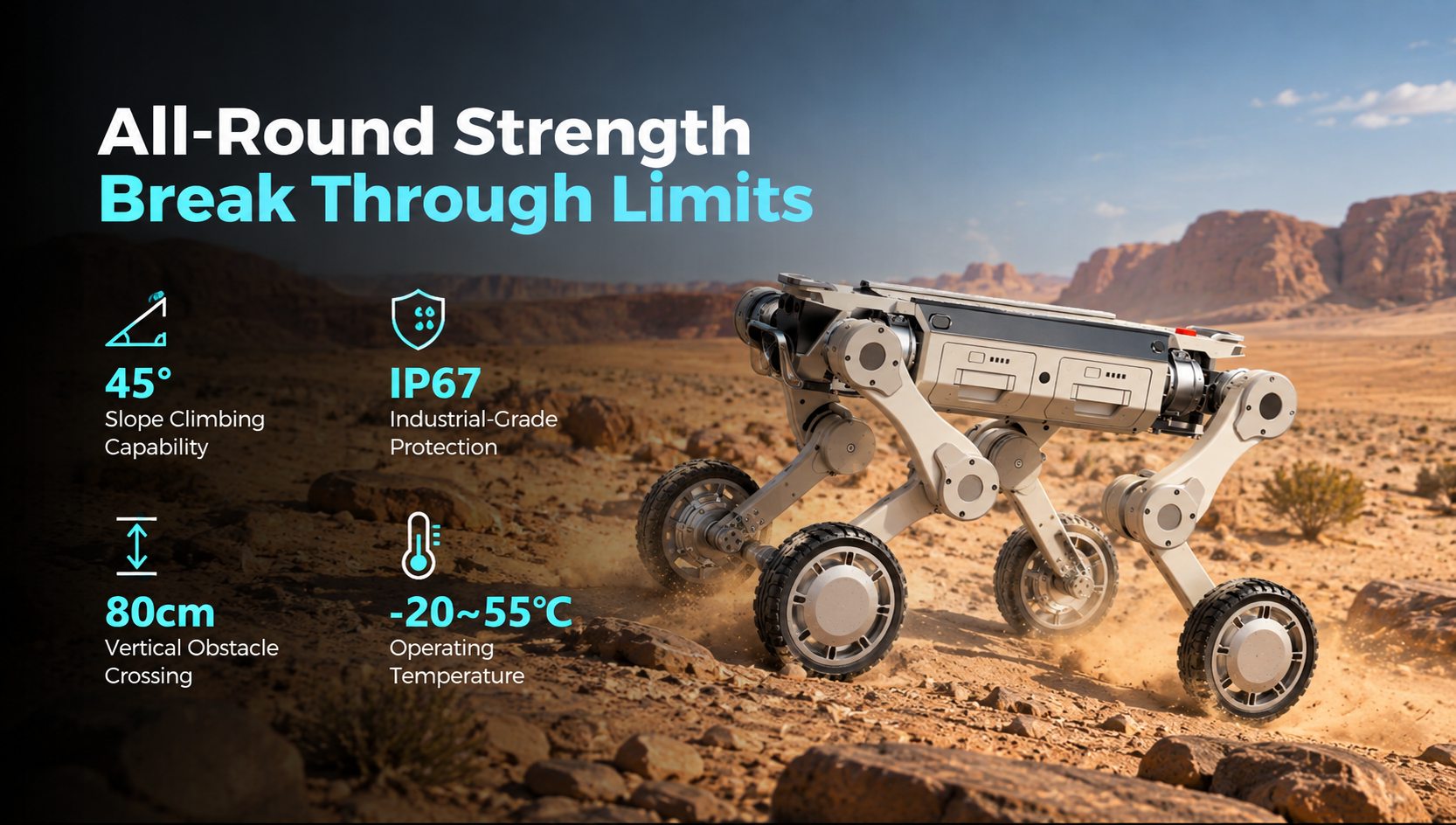

Tongchui M1 all-round strength and IP67 protection
