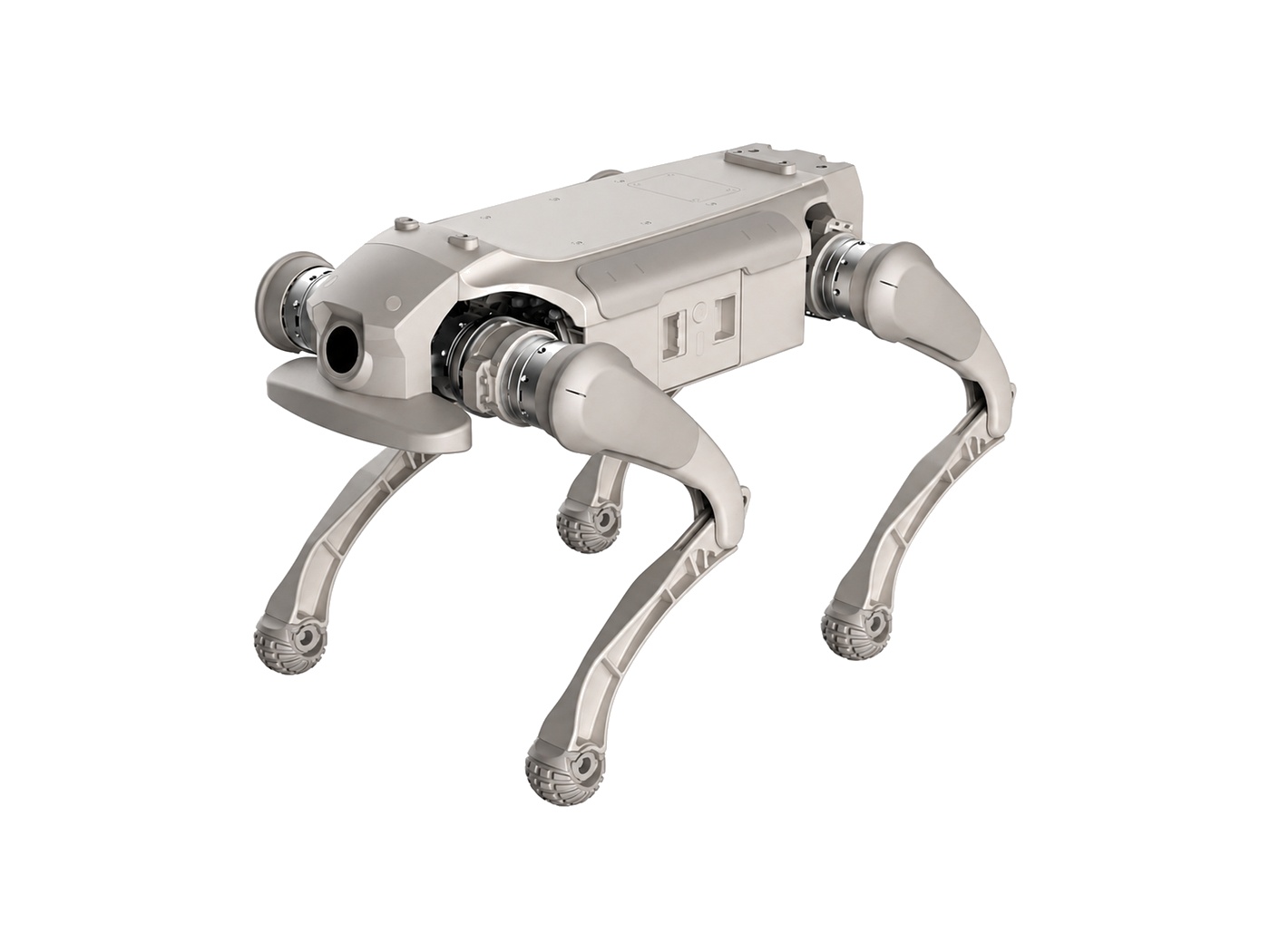

Gangbeng L1 Quadruped Robot

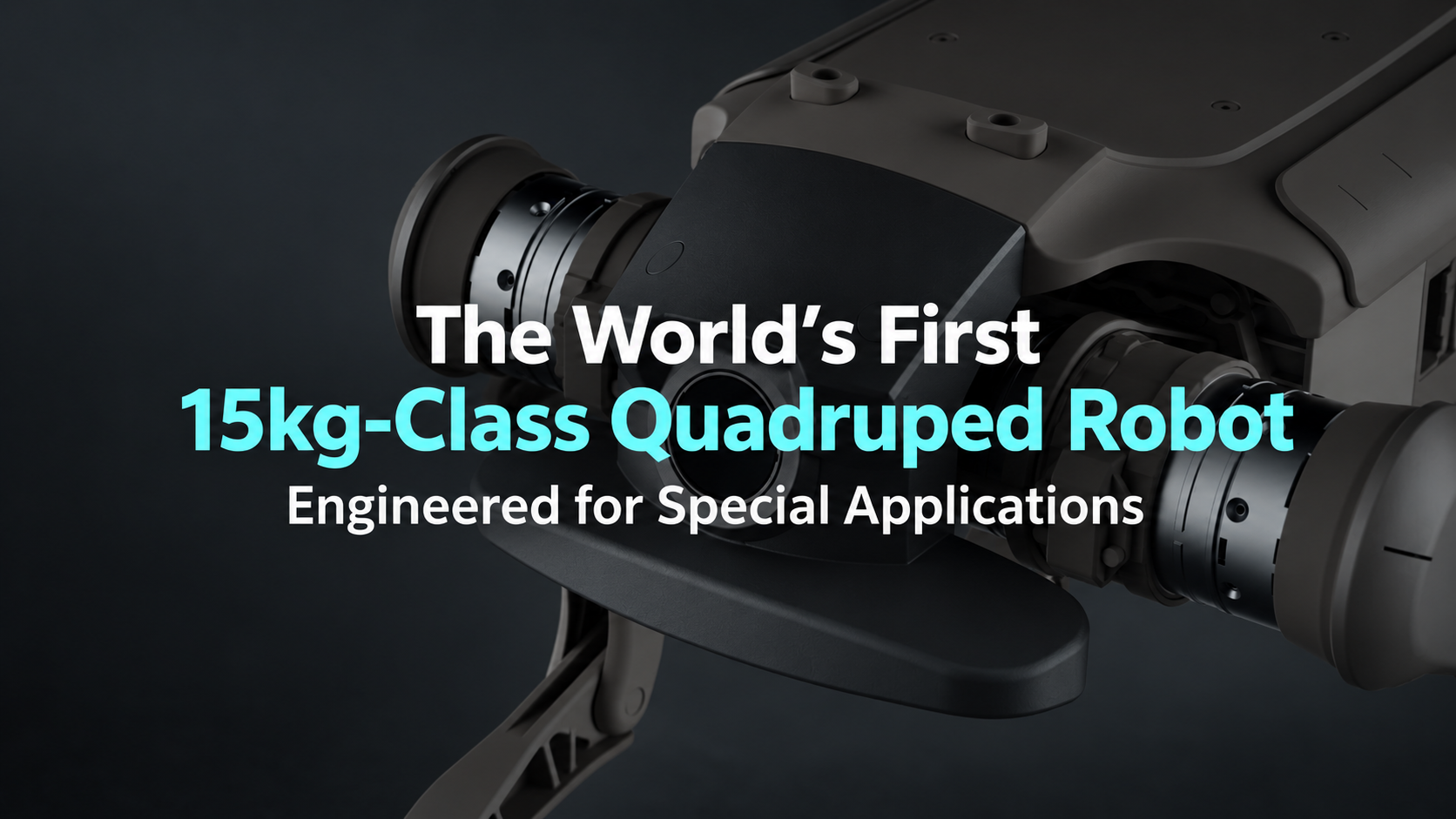

AeroValo distributes the Gangbeng L1, a compact 15 kg-class quadruped robot for inspection, patrol, education, and secondary development. The listed configuration provides an approximately 8 kg payload, IP54 protection, and Ethernet, USB, power, SBUS, and UART interfaces. Send your application, payload, and integration requirements for configuration review and quotation.

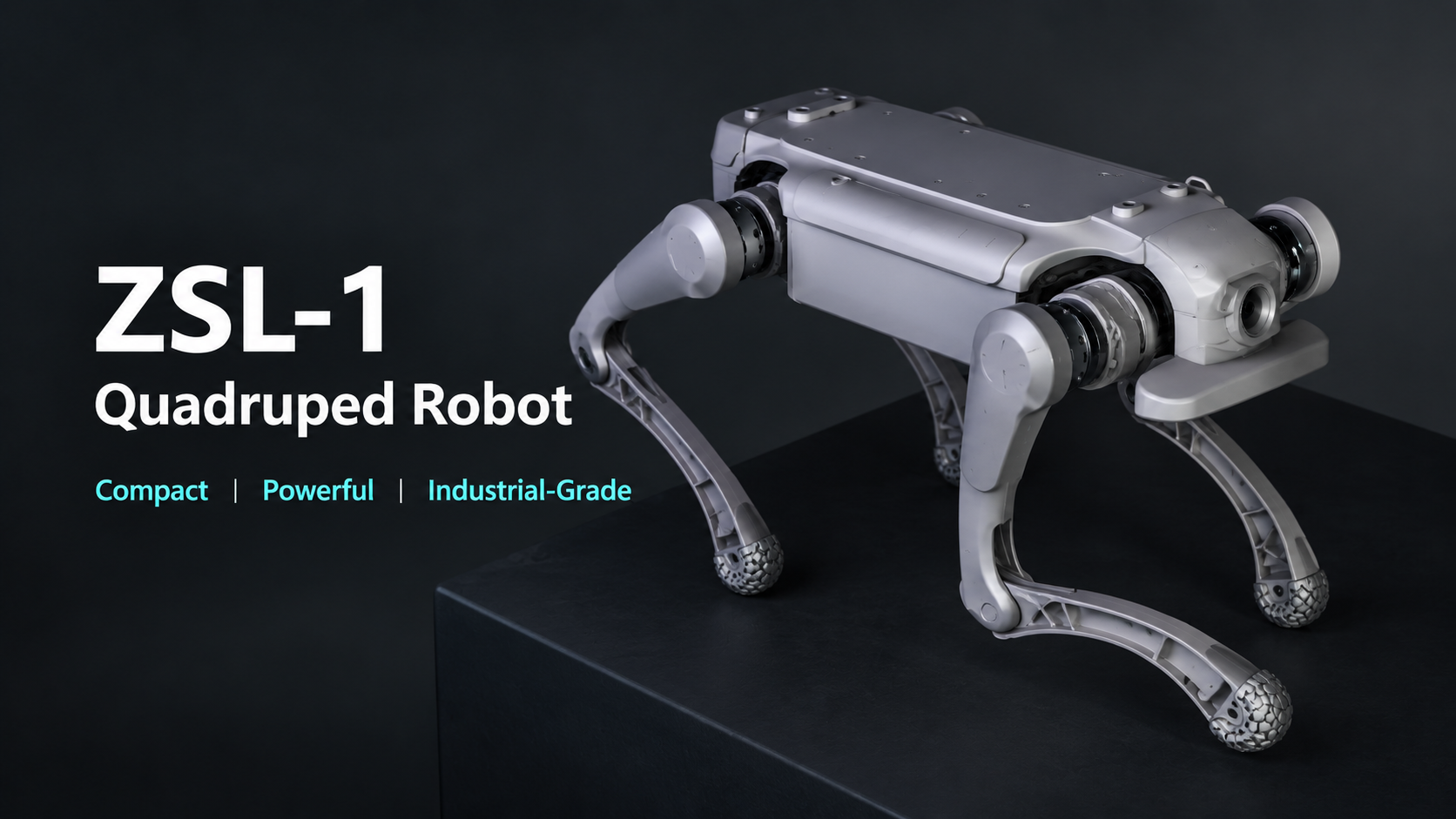

ZSL-1
Technical Specifications
- Degrees of Freedom
- 12 DOF
- Dimensions
- 630 x 360 x 415 mm
- Weight
- Approx. 15 kg
- Payload
- Approx. 8 kg; 10 kg maximum

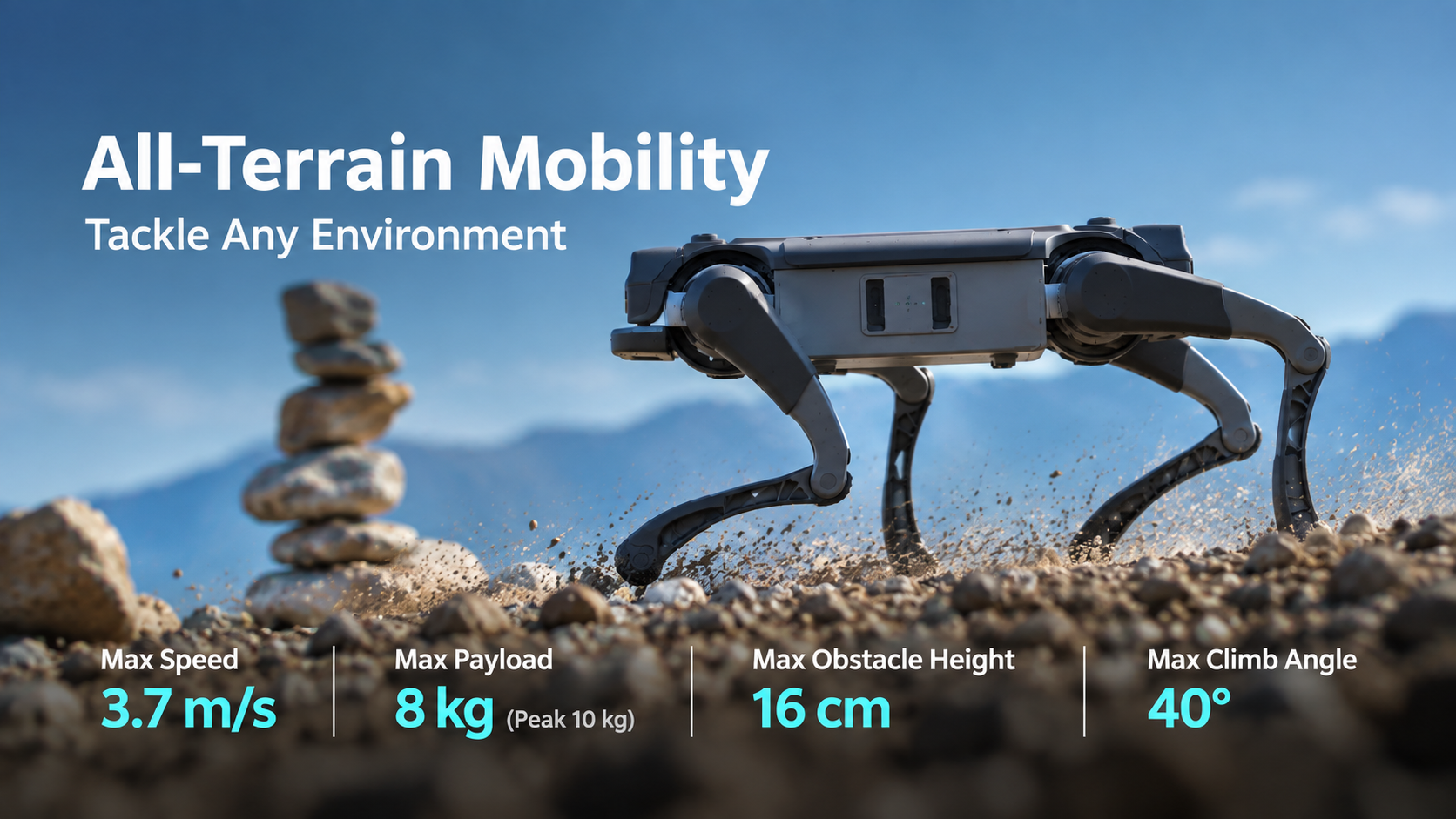

- Maximum Speed
- 3.7 m/s
- Maximum Obstacle Height
- 16 cm continuous step climbing
- Maximum Climb Angle
- 40°

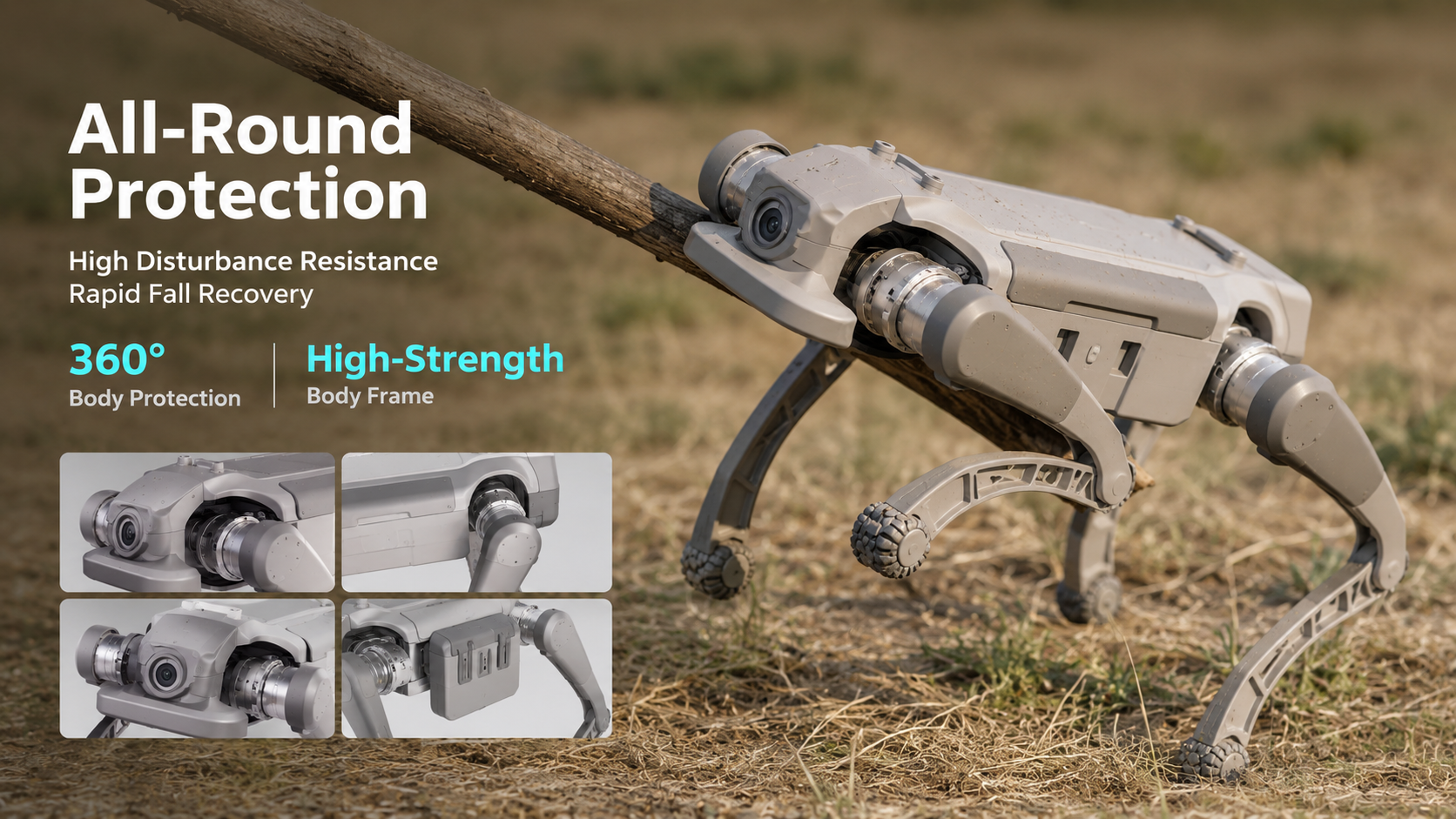

- Disturbance Resistance
- High disturbance resistance
- Fall Recovery
- Rapid self-recovery supported
- Movement
- Forward, backward, lateral movement, rotation, and more
- Advanced Actions
- Upward jump, two-leg stance, backflip, greeting, and more
- Battery
- 5 Ah nominal; 4.6 Ah rated; 43.2 V

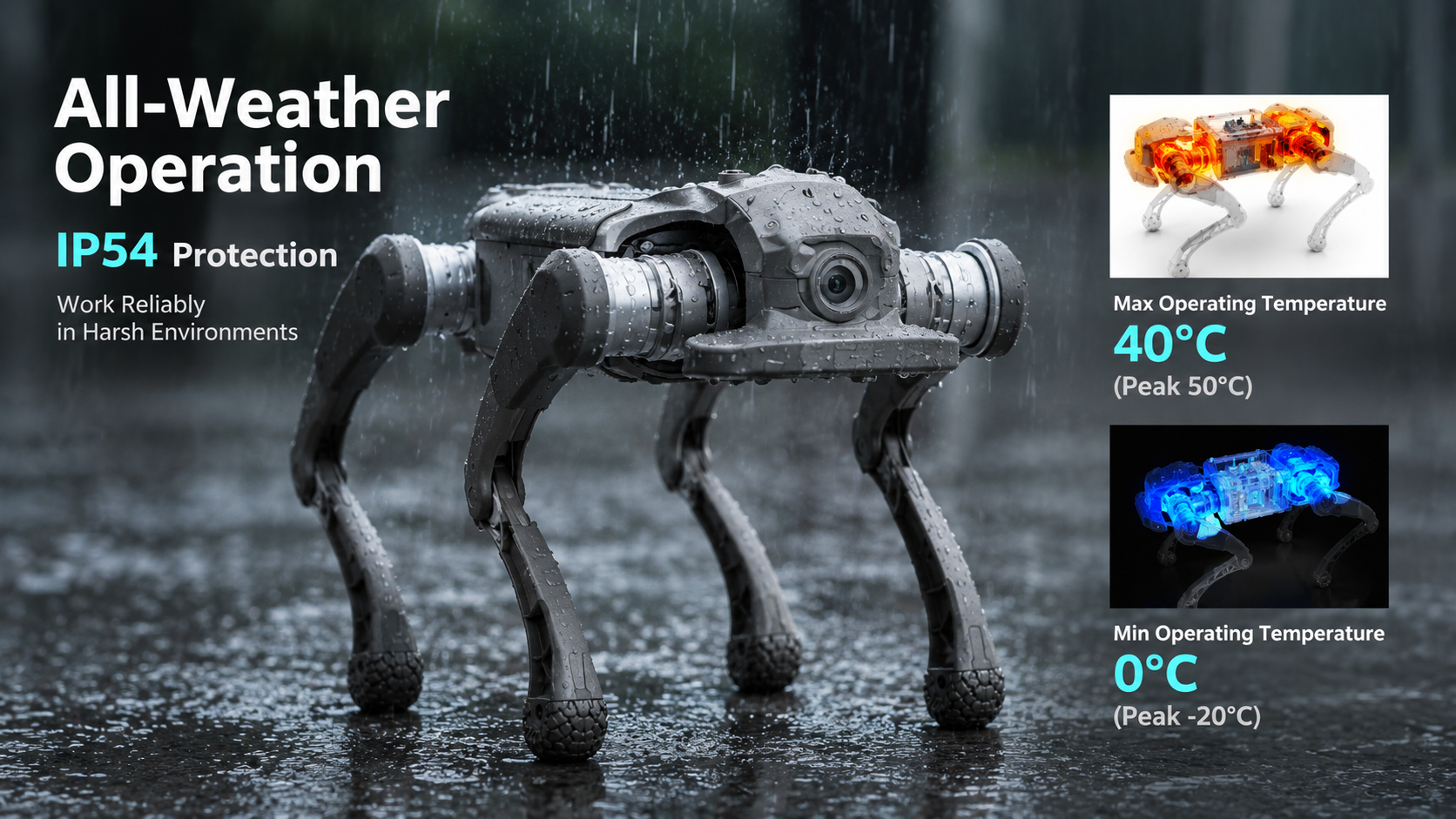

- Operating Temperature
- 0°C to 40°C
- Protection Rating
- IP54
- Onboard Computing
- High-performance 8-core CPU

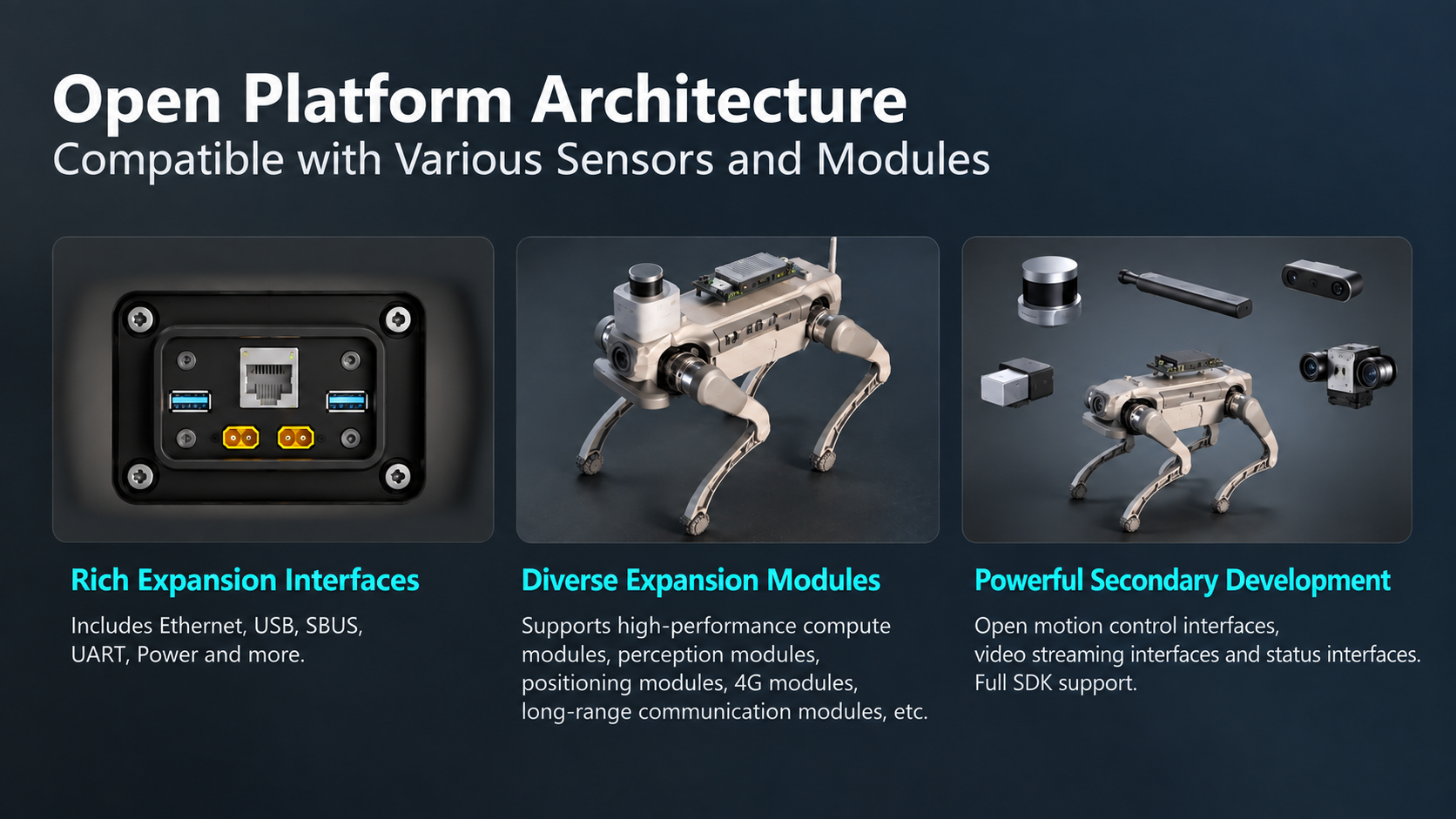

- Interfaces
- Ethernet, USB, power, SBUS, and UART
- Secondary Development
- Supported

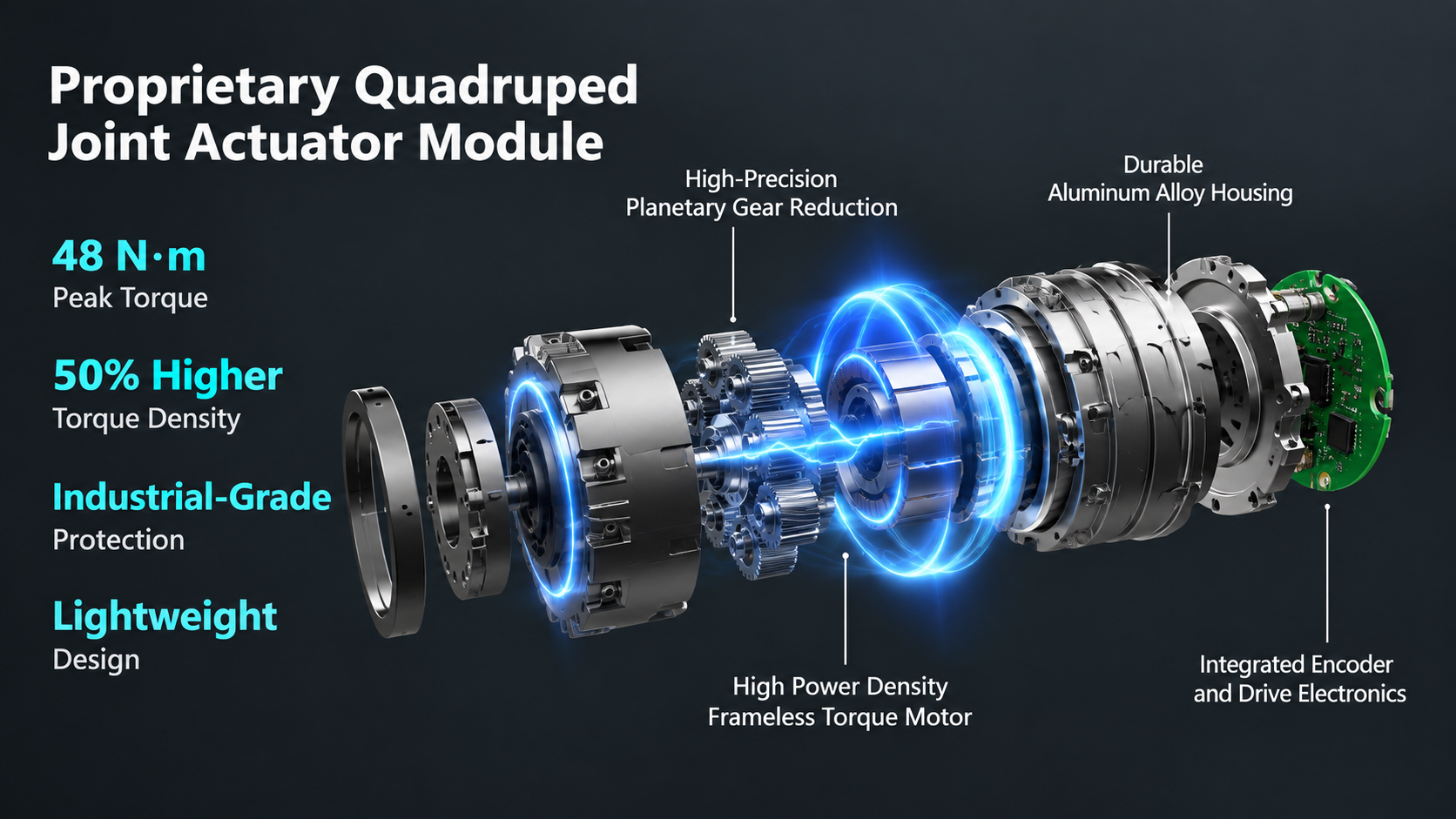

- Precision Joint Motors
- 12 aluminum-alloy joint motors
Compare Gangbeng Robot Platforms
Mounting and interface compatibility must be confirmed for each robot configuration.
Product Questions
What applications is the Gangbeng L1 designed for?
The L1 is intended for civil inspection, patrol, education, robotics development, and modular payload integration.
What weight and payload are listed?
The robot weighs approximately 15 kg. The listed payload is approximately 8 kg, with a stated maximum of 10 kg.
Which interfaces and development options are listed?
The listed interfaces are Ethernet, USB, power, SBUS, and UART. Secondary development is supported.
What environmental specifications are listed?
The page lists IP54 protection and an operating temperature range of 0°C to 40°C. Suitability for a specific site should be confirmed before purchase.
What information should I provide for a quotation?
Please provide the application, required payload, route and surface conditions, integration interfaces, quantity, and destination market.
RFQ
Ask about Gangbeng L1.
Send your target application, required payload, operating environment, quantity, and integration requirements. We can recommend the matching L1 configuration for inspection, education, development, or field robotics projects.
- Ground robot configuration and accessory support
- Sensor, compute, positioning, and communication integration
- Export-ready packaging and documentation
